Major Upgrade to Dialing Rule Optimizer

If you've used the Dialing Rule Optimizer, you probably know how easy it makes it to create your North America least-cost routing rules for Lync.  After much work, I'm proud to unveil new functionality that will automate the process even more.

Originally, the Optimizer created a simple text file that you would copy and paste into Lync Powershell.  It would create the phone usage, route and trunk translation rules necessary for least cost routing for a given site.  If you input the name or IP address of your PSTN gateway, it would set it in the route, but if not, then the route would not be associated with a gateway.  The process was not very tolerant of errors either.  If you mistyped the name of the PSTN gateway, much of the script would fail.  The original output got you started, but you were still left to your own devices for pretty much everything else.

With this latest release, the Optimizer will provide you with a ready-made Powershell .PS1 script that will do the following:

1. Prompts you for a site to apply the script to
2. Checks for a PSTN gateway assigned to the site.  If one isn't found, the program will quit.
3. Creates a site-level Voice Policy (unless one already exists).
4. Creates standardized site-level normalization rules for local/long distance/international as per my http://maxyaquos.blogspot.com /2011/01/enterprise-voice-best-practices-in-lync.html">Normalization Best Practices post.  If your site is in Canada, creates normalization rule for 310 toll free calls.
5. Creates separate PSTN Usages for Local, National and International and adds them to the Voice Policy as per my http://maxyaquos.blogspot.com /2011/01/enterprise-voice-best-practices-in-lync_21.html">Usages and Routes Best Practices post.
6. Determines the PSTN gateway associated with the site. If no PSTN gateway is defined in the topology, you'll have to assign the routes and trunk translation rules manually after you set one up.
7. Creates routes for local, national, international, toll-free, and service numbers (411, 911 etc).  If your site is in Canada, creates an additional route for 310 calls.
8. Assigns those routes to the default PSTN gateway in the site.
9. Creates trunk translation rules for local calls, national and international calls.  If you entered an external dialing prefix on the web page, it will take this into account as well.  If you select the SIP Trunking option, then the trunk translation rules are not applied.

Preparation for the script is also much simpler.  All you need to do beforehand to get the most out of the script is to ensure that your sites all have a PSTN gateway assigned.  The script looks at the site and will try to apply the routes and translation rules to the default PSTN gateway assigned to that site.  If one isn't available, the script will still work, but you will have some manual labour to do afterwards.

Detailed Instructions

1. Ensure all your Lync sites have a default PSTN gateway assigned to it
2. Go to http://www.LyncOptimizer.com
3. Pick your country from the drop-down list.  Only a few are available now, but more will be added over time.
4. Enter the area code information for the site you want to apply the script to
5. If you have to enter 9 (or some other digit) to get an outside line, enter it in the appropriate box.
6. If you are using a SIP trunk that accepts E.164 phone numbers, select the Using SIP Trunk option.  If selected, the program will not create trunk translation rules.  All numbers will be sent to the next hop formated as E.164. Note: Don't select both an external access number AND SIP trunk options.  The two options are mutually exclusive.
7. If you want Lync to block premium rate phone numbers (like 900 in North America) for all users, select the Block Premium Numbers checkbox.
8. If your North American local dialing area supports 7-digit dialing, select the 7-Digit Normalization checkbox.  If you're unsure if your local dialing area supports 7-digit dialing, leave this blank. Doesn't apply to other countries.
9. To receive updates should the ruleset change, enter your email address.  Only applies to North American users.
10. After pressing Generate Rules, wait a minute for the rules to be generated.
11. The program will provide 2 files.  The .PS1 file will do almost everything to get you up and running.  The .TXT file provides only the least-cost routing rules for North American users, and assumes you will be doing most of the other work.
12. Save the .PS1 file to your Lync server, start up the Lync Management Shell and run the script.
13. You will be prompted for the site to apply the rules to (as below).  Select the appropriate site and in a few seconds you'll have all you need to get started.

Here's what the Optimizer looks like for North American users:

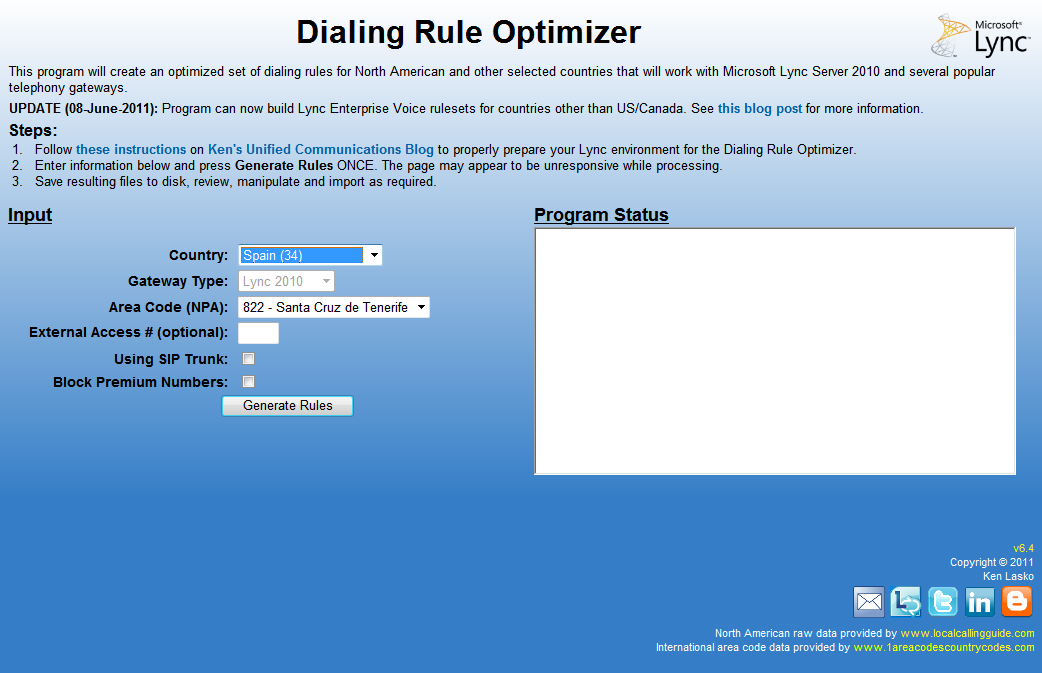

Here's what it looks like for international users:

The International Optmizer doesn't have to do the same level of processing that it needs to do for North American numbers.  There is a clear deliniation between local and long distance calls, which makes creating rulesets much simpler.  Since the dialing rules aren't expected to change over time, you can't enter an email address for non-North American rule updates. Also, since this is designed as a Lync-only feature, you cannot (nor should you need to) create rulesets for the Dialogic or Audiocodes gateways.

Run the Optimizer once for each site, and apply the resulting .PS1 file.  The finished output should take care of all your basic external dialing scenarios using my best practices as laid out in my Enterprise Voice Best Practices posts.  You will just have to add normalization/routing rules for internal use as you see fit.

Below are some screenshots of what a virgin, never-touched Lync Enterprise Voice implementation will look like after applying the script (this example uses Toronto as the location).

Dial Plan

Voice Policy

Routes

Usages

Trunk Configuration (If SIP Trunk Option NOT Selected)

Blocked Premium Numbers (if selected)

The blocked premium number list is customized for each country.  The actual announcement can be customized either by using text-to-speech or audio files.  See http://maxyaquos.blogspot.com /2011/09/block-premium-rate-numbers-with-dialing.html">this blog post for more information.
To provide failover and least cost routes for multiple sites, simply add the appropriate PSTN usages to your Voice Policies as desired.  Use http://maxyaquos.blogspot.com /2011/01/enterprise-voice-best-practices-in-lync_21.html">this post as a guide for how to provide least-cost and failover routing between multiple sites.

If you still prefer to do things manually, or you already have a voice deployment you're happy with, the original script format is still included as a .txt file.  It will create the bare minimum PSTN usages and routes for least-cost routing.

I hope you find this useful.  Please let me know if you have any problems or questions.  If you find a bug in the script, PLEASE let me know so I can fix it.
